Abound Ebike

Multifaceted cargo ebike with endless possibilities.
118.00
1999.00
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description Customers Reviews

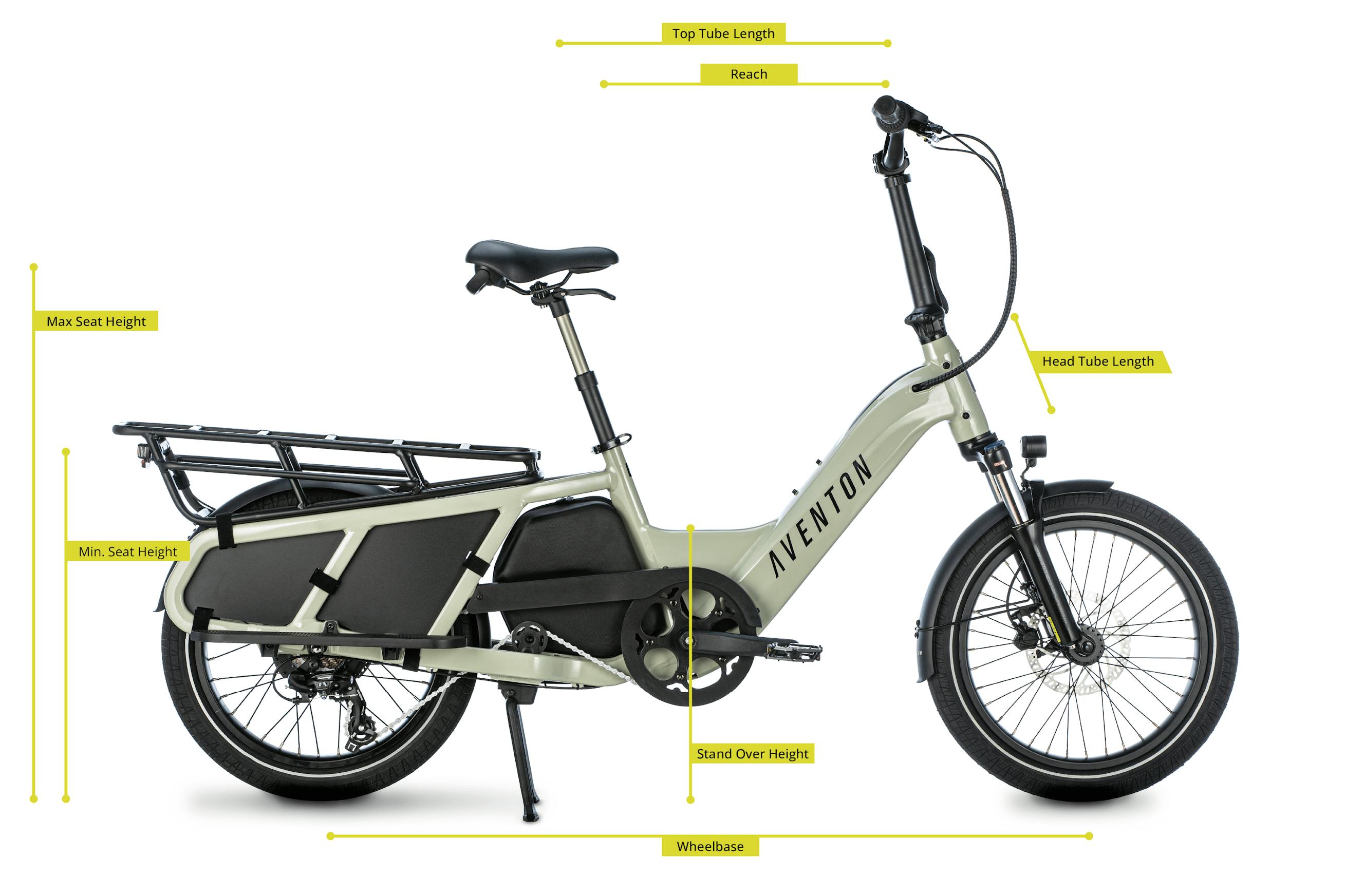

          Geometry

          Abound Ebike is available in 1 sizes to suit most adults.

          Frame Size One size fits all
          Reach 426mm
          Head Tube Length 174mm
          Standover Height 472mm
          Wheelbase 1274mm
          Min Saddle Height 770mm
          Max Saddle Height 970mm




          TECHNICAL SPECIFICATIONS

          General Info

          Model：Abound Ebike
          Pedal Assist：4 Levels
          Range：Up to 50 miles
          Total Weight Limit：440 lbs
          Ideal Use：Cargo & Utility
          Folding：No
          Rider Height：4'11" - 6'3"
          Weight：82 lbs
          Safety Certifications：UL and TUV Safety Certified
UL 2849 / UL 2271

          Frameset

          Frame：Double-Butted Aluminum Alloy
          Fork：Suspension Fork with 50mm travel, with lockout
          Footboards：Aluminum
          Frame Style：Step-Through

          Wheelset

          Rim：Double Wall Aluminum 36h Front & Rear
          Tubes：Butyl Rubber, Schrader Valve
          Hubs：36H Disc Nutted Front, Nutted Rear
          Tires：20 x 2.4
          Spokes：Black Stainless 13G Front / Iron 12G Rear

          Ebike System

          Throttle：Aventon LH Handlebar Mounted
          Display：LCD Smart "Easy Read"
          Sensors：Double Sided Bottom Bracket Torque Sensor
          Charger：48V, 3 Amp Fast Charger
          Lights：Front and rear lights integrated
          Battery：Samsung 2100 cells, 48V, 14.4AH, 678.2Wh, UL UN38.3 MSDS certification
          Speed：Class 2
          Motor：48V, 750W sustained, 1200W peak brushless rear hub motor

          Brakes

          Brakes：Hydraulic

          Drivetrain

          Pedals：9/16" Alloy Platform
          Bottom Bracket：Square Taper, Sealed, Torque Sensor
          Crankset：170mm w/ 52 T
          Rear Derailleur：Shimano 7 speed
          Cassette：14-28T, 7 Speed
          Shift Lever：7 Speed Twist
          Chain：148 Link, 7 Speed

          Cockpit

          Saddle：Aventon Saddle
          Seatpost：Dropper Seatpost, 30.9mm x 440mm
          Stem：Folding, Height Adjustable, 31.8mm, 9 Degree Rise
          Seat Clamp：34.9mm Quick Release
          Handlebars：Aluminum 31.8mm, 700mm
          Headset：Sealed Bearing Headset
          Grips：Ergonomic Comfort

          Included Accessories

          Kickstand：Included, center mount
          Storage Bag：Polyester, EVA Waterproof
          Rear Rack Weight Limit：143 lbs
          Fenders：Included
          Rear Rack：Included

          Miscellaneous

          Dimensions：Bike Box: 167cm x 37cm x 73cm
          Suspension：Front

          Abound Ebike

          Haul it all with the Abound, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! Equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let Abound do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.

          Abound Ebike
          Backlit LCD Display
          The Full Color Display provides all the important data you need, including speed, distance traveled, pedal assist level, and much more. Activate your ebike’s integrated lights and sync to the Aventon app to share your rides with friends and a larger Aventon community.
          Abound Ebike
          Torque Sensor
          The torque sensor recognizes your pedaling output and matches it, amplifying your momentum. This provides a more natural riding experience, conserves battery life, and extends riding range.
          Abound Ebike
          Front Suspension
          A suspension fork with up to 50mm of travel provides comfort for you and your precious cargo.
          Abound Ebike
          Fenders & Rear Rack
          Front and rear fenders will keep you protected from the elements, while the rear rack, with up to 143 lb weight capacity, offers more room to bring everything you need, wherever you want to go.
          Abound Ebike
          Dropper Seatpost
          Abound’s new quick-adjusting dropper seatpost is comfort on command. By squeezing the lever beneath the seat, you can easily glide the seat up or down, giving you ultimate control and comfort over your riding position.
          Abound Ebike
          Storage Bag
          The storage bag lets you zip up and stash away the personal items you might need to bring along for the long haul around town.
          Abound Ebike
          Footboards
          Footboards will let you rest assured that your passenger has a place to rest their legs and ride comfortably out of harm’s way.
          Abound Ebike
          Integrated Lights w/ Turn Signal Functionality
          Integrated front and rear lights allow you to see and be seen on the road, while the all-new turn signal functionality will indicate your next move to motorist and other cyclists.
          Abound Ebike
          Hub Motor & Battery
          The powerful 750W (sustained) rear hub motor with a 720Wh high capacity integrated battery makes getting around with the goods that much easier.
          Abound Ebike
          Pedal Assist & Throttle
          Throttle on demand and four levels of pedal assist will maximize your efforts and minimize the amount of energy you use. Tow around town with a top speed of 20 mph and up to 50 miles in range.
